Hollow Flange Rotary Torque Transducer 0-10kNm With Speed
Measurement

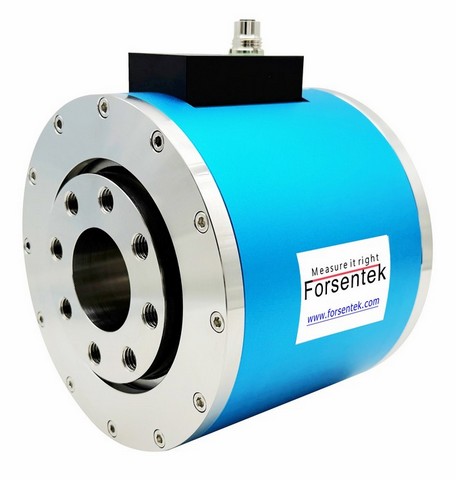

The FYTF Hollow Flange Type Rotary Torque Sensor is a cutting-edge
device designed to provide precise and reliable torque measurement
through advanced non-contact transformer technology. Unlike
conventional slip-ring sensors, the FYTF employs a contactless
signal transmission method, using coils to transfer data between
the rotating shaft and the fixed outer body. This innovative design
eliminates mechanical wear, ensuring exceptional durability and
maintenance-free operation, even in the most demanding
environments. The FYTF dynamic torque meter is available in rated
capacities of 2kNm, 3kNm, 5kNm, and 10kNm, with the capability to
measure rotational speeds of up to 2000 RPM. Both the torque and
speed channels are equipped with built-in circuits that deliver
output signals in 0-5V, 0-10V, or 4-20mA formats, proportional to
the measured torque and speed. This simplifies signal processing
and integration into existing systems, while the flange-to-flange
design ensures easy installation between drive and load components.
The FYTF torque transducer is particularly well-suited for
applications such as measuring the torque and speed of power
take-off (PTO) shafts in agricultural and forestry machinery, where
it ensures the safe and efficient operation of connected equipment.
Built on Forsentek’s proven sensor technology, the FYTF meets the
rigorous demands of torque, speed, and angle measurement across a
wide range of industries, including industrial testing, engine and
plant construction, automotive, and motorsports. Its robust
construction and high precision make it a reliable choice for
critical applications. Additionally, the FYTF rotating torque
sensor can be easily customized to meet specific requirements,
offering unparalleled versatility for specialized applications.
Whether used in standard configurations or tailored setups, the
FYTF delivers consistent and accurate performance, making it an
indispensable tool for professionals seeking dependable torque
measurement solutions in challenging environments.
Specifications
| Capacity | 2kNm 3kNm 5kNm 10kNm |
| Max rotating speed | 2000RPM |
| Rated output | 0-5V / 0-10V / 4-20mA |
| Sampling rate | 500Hz |
| Excitation | 24V DC (or 12V DC) |
| Nonlinearity | ±0.5% R.O. |
| Hysteresis | ±0.5% R.O. |
| Nonrepeatability | ±0.2% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Operating temp. | -10...+60oC |
| Temp. Shift Zero | ±0.02% of R.O./°C |
| Temp. Shift Span | ±0.02% of R.O./°C |
| Ingress protection | IP40 |
| Material of element | Stainless steel |
| Material of housing | Aluminum |
| Cable | Ø6*5000mm with mating connector |
Hollow Flange Type Rotary Torque Sensor 0-10kNm With Speed Encoder
Click here to download data
sheet
