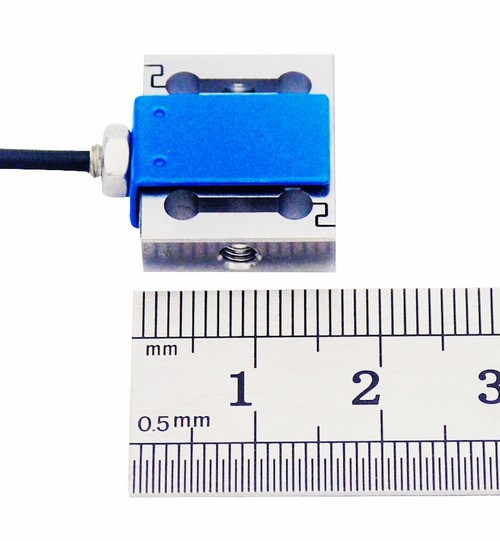

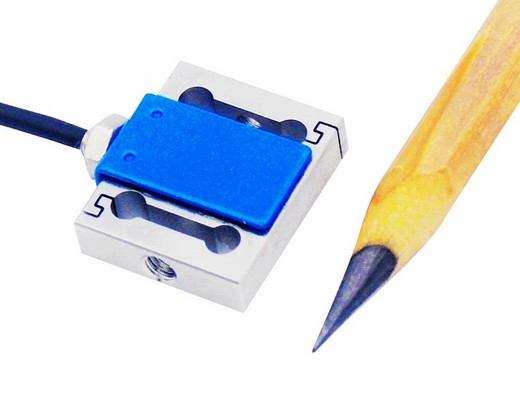

Micro Tension Load Cell 200g 500g Miniature Jr. S-beam Force
Transducer 5N 2N
The FSMY-200g/500g miniature compression and tension load cell is a
precision-engineered device designed to meet the demands of
accurate force measurement across various industries. Featuring M3
tapped holes on both sides of the transducer, this load cell allows
for effortless mounting of threaded rods, eye bolts, load buttons,
or hooks, ensuring adaptability for a wide range of applications.
Constructed from high-quality stainless steel, the FSMY-200g/500g
is built to withstand rigorous use while providing reliable push
and pull force measurements. Its compact s-beam design makes it an
ideal choice for applications where space is limited but precision
is critical. Whether used in industrial settings or research
laboratories, this load cell offers unmatched versatility and
durability.
At the core of the FSMY-200g/500g’s performance is advanced strain
gauge technology, which ensures exceptional accuracy and
consistency. With a resolution of 0.05g/0.1g and a maximum
non-linearity of just 0.1% of the full scale, this load cell
delivers precise and reliable results for even the most demanding
tasks. Each unit undergoes rigorous testing and inspection before
shipment, guaranteeing that customers receive a product that meets
the highest standards of quality and performance. This meticulous
attention to detail ensures the FSMY-200g/500g is a dependable
solution for applications requiring high accuracy, such as spring
testing, robotics, medical devices, and precision assembly.
The FSMY-500g’s compact and lightweight design makes it perfect for
integration into systems where space and precision are paramount.
It is widely used in industries such as textiles, robotics, and
medical device manufacturing, where accurate force feedback and
measurement are essential. Combining small size, versatility, and
high performance, the FSMY-200g/500g load cell is the ultimate
solution for professionals seeking reliable force measurement
capabilities. Whether for industrial automation, research, or
development, this load cell is designed to deliver consistent and
dependable performance, making it a top choice for precision force
measurement needs.

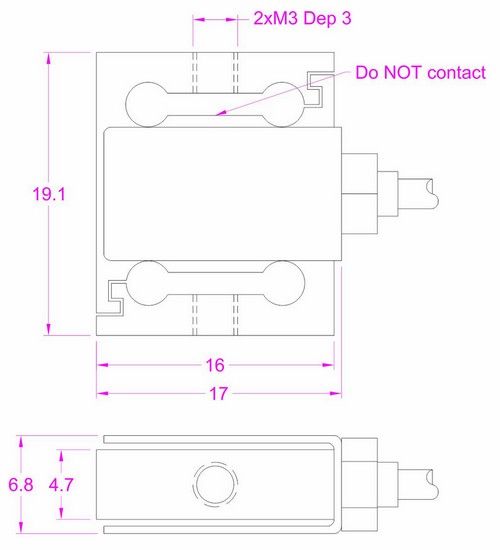

Dimensions(unit in "mm")
| Capacity | 2N / 200g 5N / 500g |
| Rated output | 2.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.1% of full capacity |
| Hysteresis | ±0.1% of full capacity |
| Nonrepeatability | ±0.05% of full capacity |
| Creep(5min) | ±0.1% of full capacity |
| Safe overload | 120% of full capacity |
| Ultimate overload | 150% of full capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 352±3 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code | Compression@
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
A Force Sensor is a transducer that converts mechanical load into
mV signal proportional to the applied force.The acting force causes
deformation of the measuring element,the bonded strain gage deforms
accordingly which will cause the resistance change of the
wheatstone bridge,under constant power supply, the output signal
between Sig+ and Sig- will change proportionally,thus the
load/force can be measured by measuring the output signal from the
transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Jr s-beam load cell FSMY-500g is around 2.0mV/V.
Power supply of S type force sensor FSMY-500g is normally within
3-12V.
Load / Capacity is within 0-1.
So the output range of S beam force transducer FSMY-500g is
normally within -24mV...+24mV for tension and compression force
measurement.
A load cell amplifier can be used to convert mV signal into -5-5V /
0-10V / 4-20mA for easy signal processing,taking FSMY-500g and
FSC(-5-5V)-24V for example,the load-voltage relationship will be
0-500g compression load VS 0-5V output, 0-500g tension load VS
0-(-5V) output,which is linear regardless of the measurement error.
