Micro Load Cell 200g 500g Tension And Compression Force Measurement
2N 5N

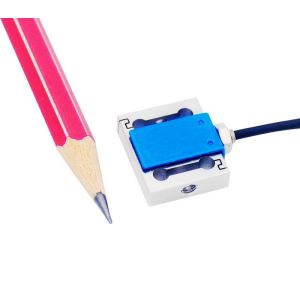

The FSMY miniature compression and tension load cell is a highly
advanced and meticulously engineered device designed to meet the
demands of precise force measurement applications. Featuring M3
tapped holes on both sides of the transducer, this load cell allows
for effortless mounting of various accessories such as threaded
rods, eye bolts, load buttons, or hooks. This versatility makes it
suitable for a wide array of force measurement tasks across
different industries. Constructed from durable stainless steel, the
FSMY is specifically designed to measure both push and pull forces,
making it a reliable choice for bidirectional force measurement.
At the heart of this miniature s-beam load cell is proven strain
gauge technology, which ensures exceptional precision and accuracy.
With a resolution of 0.05g/0.1g and a maximum non-linearity of 0.1%
of the full scale, the FSMY-200g/500g delivers highly reliable and
consistent results. Each unit undergoes rigorous testing and
inspection before shipment, guaranteeing that customers receive a
product that meets the highest standards of quality and
performance. This meticulous attention to detail ensures that the
load cell is dependable for even the most demanding applications.
Compact and lightweight, the FSMY-200g/500g is ideal for
applications where space and precision are critical. It is
particularly well-suited for use in spring testing, robotics,
medical devices, textile industry processes, and precision
assembly. Its small size and high performance make it an excellent
choice for integrating into systems that require accurate force
feedback and measurement. Combining versatility, durability, and
precision, the FSMY-200g/500g load cell stands out as a top-tier
solution for professionals seeking reliable and accurate force
measurement capabilities in a compact form factor. Whether in
industrial or research settings, this load cell is designed to
deliver consistent and dependable performance.
Dimensions(unit in "mm")
| Capacity | 200g / 500g |
| Rated output | 2.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.1% of full capacity |
| Hysteresis | ±0.1% of full capacity |
| Nonrepeatability | ±0.05% of full capacity |
| Creep(5min) | ±0.1% of full capacity |
| Safe overload | 120% of full capacity |
| Ultimate overload | 150% of full capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 352±3 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code | Compression@
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
A Force Sensor is a transducer that converts mechanical load into
mV signal proportional to the applied force.The acting force causes
deformation of the measuring element,the bonded strain gage deforms
accordingly which will cause the resistance change of the
wheatstone bridge,under constant power supply, the output signal
between Sig+ and Sig- will change proportionally,thus the
load/force can be measured by measuring the output signal from the
transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Jr s-beam load cell FSMY-500g is around 2.0mV/V.
Power supply of S type force sensor FSMY-500g is normally within
3-12V.
Load / Capacity is within 0-1.
So the output range of S beam force transducer FSMY-500g is
normally within -24mV...+24mV for tension and compression force
measurement.
A load cell amplifier can be used to convert mV signal into -5-5V /
0-10V / 4-20mA for easy signal processing,taking FSMY-500g and
FSC(-5-5V)-24V for example,the load-voltage relationship will be
0-500g compression load VS 0-5V output, 0-500g tension load VS
0-(-5V) output,which is linear regardless of the measurement error.
