0-5000Nm Contactless Rotary Torque Transducer with 0-5V 0-10V 4-20mA output

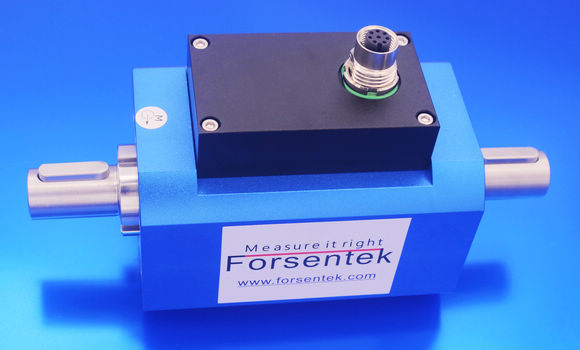

Contactless shaft to shaft rotary torque sensor FYTG is intended for both torque and speed measurement,there is no friction between rotating shaft and signal collect device thanks to contactless rotary transformer technology,which makes it much more durable compared to slip-ring type torque transducers. Contactless rotary torque sensor FYTG offers 0-2 Nm / 0-3 Nm / 0-5 Nm / 0-10 Nm / 0-20 N*m / 0-30 N*m / 0-50 N*m / 0-100 Nm / 0-200 N*m / 0-300 Nm / 0-500 Nm / 0-1kNm / 0-1500 Nm / 0-2kNm / 0-3kNm / 0-5kNm sixteen torque measuring ranges to choose from, rotating speed goes up to 12000RPM for 0-100Nm,10000RPM for 200-500NM, 6000RPM for 1k-2kNM, 4000RPM for 3k-5kNm. Both torque and speed channel delivers 0-5V , 0-10V or 4-20mA output which is proportional to the applied torque and rotating speed. Dynamic torque meter FYTG can be mounted in horizontal, vertical and other directions, keyed shafts on both sides of the sensor can be used to connect with motor and load through couplings, the sensor shaft rotates while the housing remains still during measurement. You may find rotating torque sensor FYTG suitable for applications such as torque measurement of servo motors, impellers, pumps, agitators and so on.

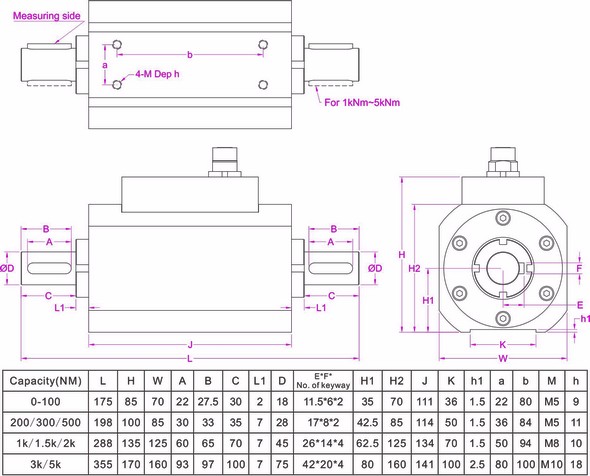

Dimensions

Specifications

0-5000Nm Shaft to Shaft Rotary Torque Sensor With 0-5V 0-10V 4-20mA Output

Click here to download datasheet
