0-5V 0-10V 4-20mA output load cell weight sensor with built in amplifier

Load cell sensor with amplifier delivers 0-5V / 0-10V / 4-20mA output directly from the weight sensor. Load transducer FAHE offers 10kg / 20kg / 30kg / 50kg / 60kg / 100kg six rated capacities to choose from. Compared to traditional external signal amplifier,load cell with built in amplifier has many advantages such as: Easier wiring, compact size and lower cost.The rectangular shape and low profile design of the amplifier board makes it compatible with most beam type load cells in the market,if you are looking for off center weighing load cell with amplified signal output,contact us for a customized solution.

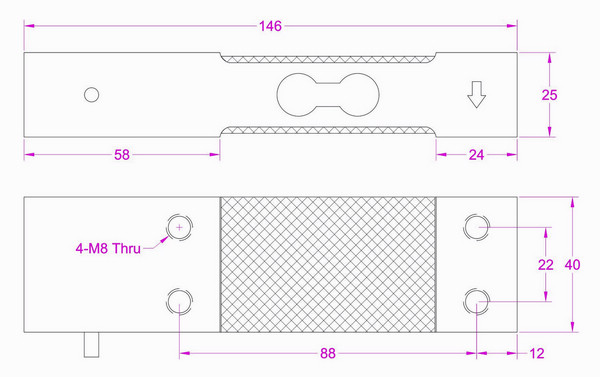

Dimensions(in "mm")

Specifications
