Miniature load sensor 5kg 10kg 20kg 50kg Compression load measurement transducer

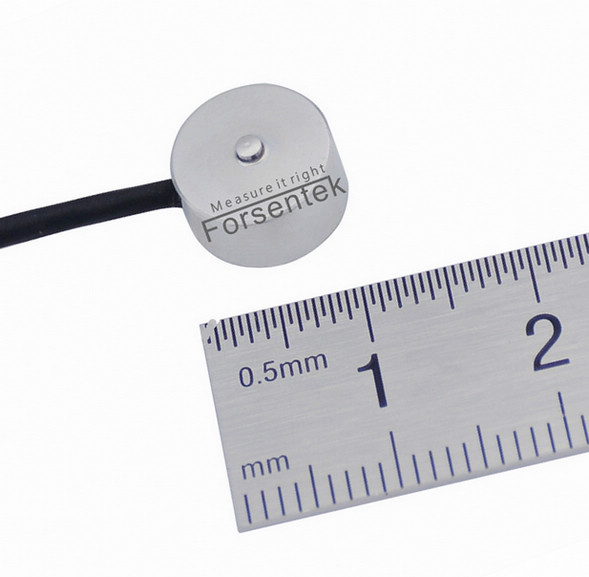

Miniature compression load transducer FC10C is made of stainless steel based on metal foil stain gauge technology intended for compression force measurement.Miniature button load cell FC10C offers 0-5kgf / 0-10kgf / 0-20kgf / 0-50kgf four measuring ranges to choose from.Small size compression load cell FC10C is featured with only 10mm outer diameter and 6mm total height which makes it extremely suitable for force measurement applications with limited mounting space.Typical applications for load sensor FC10C are such as clamping force measuremen,force overload protection,load distribution analysis,pressing die force measurement,auto equipment,assembly line and so on.

Dimensions(in "mm")

Specifications

Miniature load sensor 5kg 10kg 20kg 50kg Compression load measurement transducer

Located in China,Forsentek Co., Limited has provided load cells,force sensors and measuring solutions to more than 30 countries all over the world.

At Forsentek,you can find universal products like:

• Compression load cell
• Force sensor force transducer
• Button load cell
• Micro load cell
• Strain gauge load cell
• Reaction torque sensor
• Rotary torque sensor

Forsentek is also an expert in customized force measurement products like:

Load pins for overload protection.

Bolt sensor for fastening force monitoring.

With experienced engineers in load cell and force sensor application field,Forsentek knows exactly what you need after you talk to us.Being expert in strain gauge based load cell manafuacturing technology and custom-made service,we are confident in providing the most suiablt products to meet your application perfectly.

Send us an inquiry,we'll get back with solutions.
