Miniature size tension and compression load cell 200kg 100kg 50kg

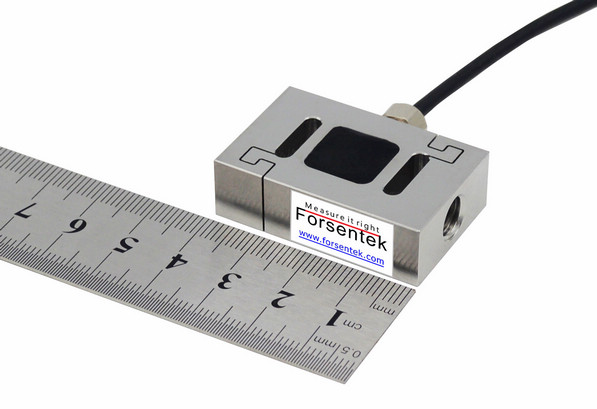

Miniature size tension and compression load cell FSSG offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features.The small s-beam load cell FSSG utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.2% non-linearity of the rated output,the compact design enables the FSSG to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment. The sensor features M8 threaded holes on two sides for the mounting of attachments or implements, this micro force sensor can be used for both tension and compression force measurement in applications with limited space.Small size tension load cell FSSG is widely used for force gauges, tension meters, switch insertion force measurement, keyboard testing, spring testing, syringe testing, touchpad testing, cylinder thrust measurement and so on.S type load cell FSSG offers 500N / 1000N / 2000N three different measuring ranges to choose from,besides the standard specifications,model FSSG can also be modified or customized according to clients' requirements.

Specifications

Miniature size tension and compression load cell 200kg 100kg 50kg

Dimensions(Unit in milimeter)

Located in China,Forsentek Co., Limited has provided load cells,force sensors and measuring solutions to more than 30 countries all over the world.

At Forsentek,you can find universal products like:

• Compression load cell
• Force sensor force transducer
• Button load cell
• Micro load cell
• Strain gauge load cell
• Reaction torque sensor
• Rotary torque sensor

Forsentek is also an expert in customized force measurement products like:

Load pins for overload protection.

Bolt sensor for fastening force monitoring.

With experienced engineers in load cell and force sensor application field,Forsentek knows exactly what you need after you talk to us.Being expert in strain gauge based load cell manafuacturing technology and custom-made service,we are confident in providing the most suiablt products to meet your application perfectly.

Send us an inquiry,we'll get back with solutions.
