    Compression And Traction Load Cell 75kN Traction Force Sensor 60kN

    Ask Lasest Price
    Brand Name : Forsentek
    Model Number : FSRT
    Certification : CE
    Payment Terms : T/T,Western Union or Paypal
    Supply Ability : 4120pcs/month
    Delivery Time : 4~25 working days
    • Product Details
    • Company Profile

    Compression And Traction Load Cell 75kN Traction Force Sensor 60kN

    Compression And Traction Load Cell 75kN Traction Force Sensor 60kN

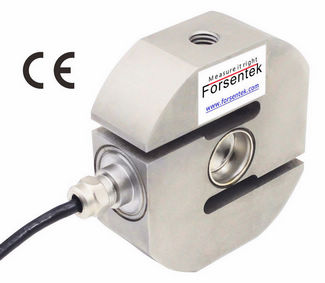

    S-beam Compression And Traction Load Cell FSRT is a compact stainless steel load cell suitable for both traction and compression load measurement. S Type Traction Compression Force Sensor FSRT offers 0-5kN / 0-10kN / 0-20kN / 0-30kN / 0-40kN / 0-50kN / 0-60kN / 0-75kN eight measuring ranges to choose from. Unified 2.0mV/V output, high accuracy with 0.02% combined error of the rated capacity.Ideal for harsh environments, it’s fully welded stainless steel and sealed to IP68. Suitable for asphalt, concrete, and aggregate batching plants. Other popular uses include power line tensioning, underground cable pulling and hanging tanks, hopper scales.

    Traction_Load_Cell_75kNTraction_Load_Cell_60kN

    A force sensor is used to determine force: The force exerted by the sample is converted into an electrical signal by the force transducer. Force sensors are therefore the most important components of an force measuring/control device. One of the most widely used technologies is based on strain gauge technology: an analog force sensor consists of a measuring element (so-called spring body) made of steel or aluminum, on which strain gauges (Wheatstone bridge) are mounted, strain gauges are electrical resistors that change their resistance while loaded, these resistance change leads to the change of output signal, the force then can be measured and evaluated by measuring the output signal from the wheatstone bridge.Compression And Traction Force Sensor FSRT is designed to measure both tension and compression force,outputs millivolt signal ranging -30mV...+30mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get -5~5V, 0-10V or 4-20mA signal which is proportional to applied force.The amplified output is can be easily processed by PLCs and data acquisition software.The applied force can be displayed through a force indicator,force indicator FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement;FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.

    Traction_Force_Sensor_75kNTraction_Force_Sensor_60kN

    Ordering code: FSRT-0.5t, FSRT-1t, FSRT-2t, FSRT-3t, FSRT-4t, FSRT-5t, FSRT-6t, FSRT-7.5t

    Specifications

    Rated Capacity

    5kN / 10kN / 20kN / 30kN / 40kN / 50kN / 60kN / 75kN
    1.1klb / 2.2klb / 4.4klb / 6.6klb / 8.8klb / 11klb / 13klb / 16.5klb
    500kg / 1000kg / 2000kg / 3000kg / 4000kg / 5000kg / 6000kg / 7500kg

    Rated output2.0 mV/V
    Excitation3-15V
    Zero balance±0.03mV/V
    Nonlinearity±0.017% of rated capacity
    Hysteresis±0.017% of rated capacity
    Nonrepeatability±0.01% of rated capacity
    Creep(30min)±0.017% of rated capacity
    Safe overload150% of rated capacity
    Ultimate overload300% of rated capacity
    Compensated temperature-10...+40oC
    Operating temperature-35...+65oC
    Temperature shift zero±0.02% R.O./10oC
    Temperature shift span±0.02% R.O./10oC
    Input resistance350±5 ohms
    Output resistance350±3 ohms
    Insulation resistance>5000M ohms
    Ingress protectionIP68
    Material of elementStainless steel
    Cable

    500kg---Ø5*3000mm

    1000kg~7500kg---Ø5*6000mm

    4-core shielded cable

    Wiring code

    Red--Excitation+ Black--Excitation-
    Green---Signal+ White--Signal-


    Click here to download datasheet
