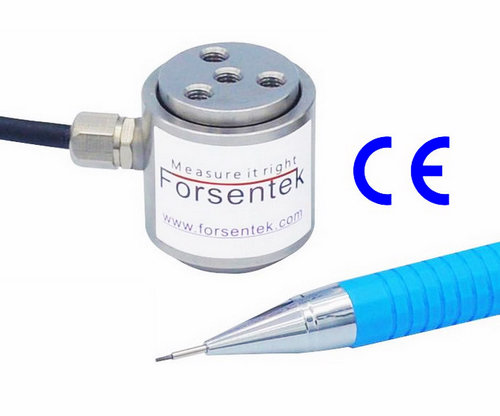

Miniature Press Force Load Cell 50N 100N 200N 500N 1KN Press Force
Sensor
Miniature Press Force Load Cell FFG is made of stainless steel
utilizing strain gauge technology to deliver maximum 0.1%
non-linearity of rated output. Miniature Press Force Sensor FFG
offers 0-50N / 0-100N / 0-200N / 0-500N / 0-1kN / 0-2kN six rated
capacities to choose from, Press Force Transducer FFG can be used
for both tension and compression force measurement. Stainless steel
construction, flange design, compact size, bidirectional force
measurement, high accuracy, Miniature Press Load Cell FFG offers a
perfect mixture for applications such as wire tension control,
force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp
force control, hand press force verification,and so on. In addition
to the standard specifications, Forsentek is also capable of and
willing to provide custom design service to meet requirements of
different applications.
Dimensions(Unit in "mm")
| Ordering code | Measurement Range | Force direction |
| FFG-50N | 0-50N / 0-10 lb | Tension/compression |
| FFG-100N | 0-100N / 0-20 lb |
| FFG-200N | 0-200N / 0-45lb |
| FFG-500N | 0-500N / 0-110lb |
| FFG-1kN | 0-1000N / 0-225lb |
| FFG-2kN | 0-2000N / 0-450 lbs |
Specifications
| Capacity | 50N / 5kg / 10lb 100N / 10kg / 20lb 200N / 20kg / 45lb 500N / 50kg / 110lbs 1000N / 100kg / 220lbf 2000N / 200kg / 450lb |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% R.O. |
| Hysteresis | ±0.1% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(5min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
A Force Sensor is a transducer that converts mechanical load into
mV signal proportional to the applied force.The acting force causes
deformation of the measuring element,the bonded strain gage deforms
accordingly which will cause the resistance change of the
wheatstone bridge,under constant power supply, the output signal
between Sig+ and Sig- will change proportionally,thus the
load/force can be measured by measuring the output signal from the
transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of flange type press load cell FFG is around 2.0mV/V.
Power supply of miniature press force load cell FFG is normally
within 3-15V.
Load / Capacity is within 0-1.
So the output range of flange mounted force transducer FFG is
normally within -30mV...+30mV for tension and compression force
measurement.
Example one: Press Force Sensor FFG-500N with 2.0mV/V sensitivity powered by 5V DC,the output
range is -10mV...+10mV(Tension and compression).
Example two: Tension And Compression Load Cell FFG-200N with
2.0mV/V sensitivity powered by 10V DC,the output range is
-20mV...+20mV(Tension and compression).
A signal conditioner can be used with the load cell to deliver
-5~5V, 0-10V or 4-20mA output.
Example: Press Force Load Cell FFG-500N working with -5-5V
amplifier,the Force-Voltage relationship will be 0-500N compression
load VS 0-5V output, 0-500N tension load VS 0-(-5V) output,when you
get 3V output,it means the current load is 300N compression
force,when you get -2V output,it means the current load is 200N
tension force,and so on.
