Radial Force Measuring Axle Wire Rope Tension Sensor Tensile force measurement

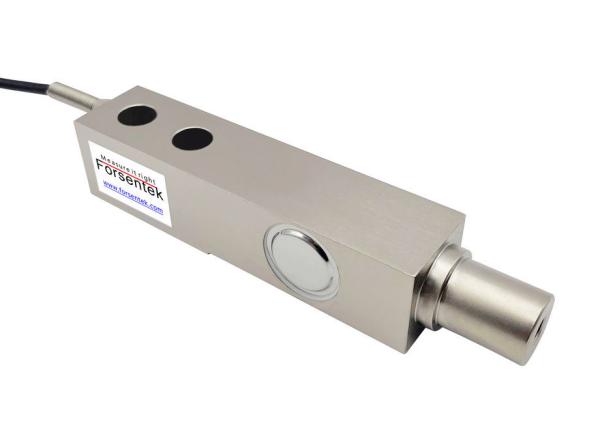

Radial force measuring axle FHBE is made of alloy steel based on strain gauge technology utilizing flat mounting degisn. Wire rope tension transducer FHBE is supplied with a 20mm-diameter bearing journal which can be used with customer-supplied rollers or guide pulleys to adapt to different objects to be measured, which makes wire tension sensor FHBE suitable for single-roller tension measurement system. Radial force measuring sensor FHBE offers 0-200N / 0-500N / 0-1kN / 0-2kN / 0-3kN / 0-5kN / 0-10kN / 0-15kN / 0-20kN nine rated capacities to choose from. Tension transducer FHBE can also be modified or customized as per client's requirements.

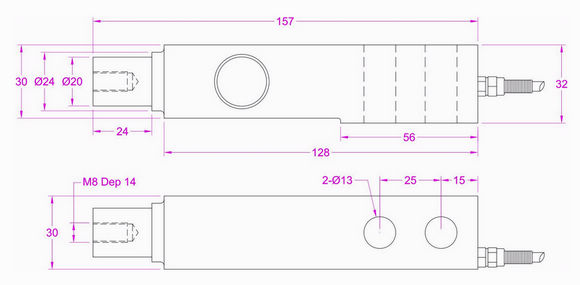

Dimensions(in milimeter)

Specifications

Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output of wire tension sensor FHBE is normally around 2.0mV/V.
Power supply of rope tension transducer is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Radial force measuring axle FHBE is normally within -30mV...+30mV.

An external signal conditioner can be used to convert mV signal into -5-5V, 0-10V, 4-20mA...for easy signal processing.
