Multi Axis Force Sensor 200lb 100lb 50lb 20lb 10 lbs 3-Axis Load Cell

Ask Lasest Price
Brand Name :	Forsentek
Model Number :	F3G
Certification :	CE
Payment Terms :	T/T,Western Union or Paypal
Supply Ability :	2100pcs/month
Delivery Time :	4 weeks

Add to Cart

Product Details
Company Profile

Multi Axis Force Sensor 200lb 100lb 50lb 20lb 10 lbs 3-Axis Load Cell

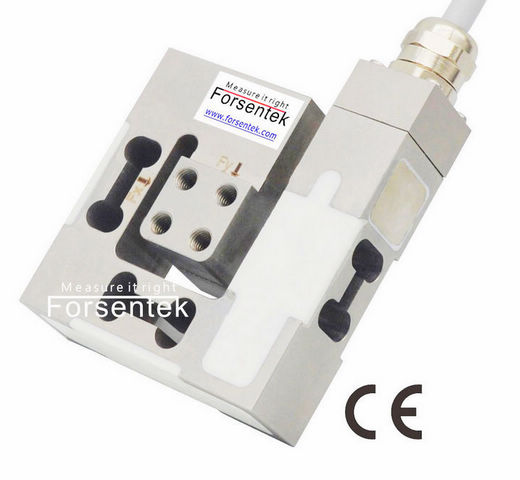

Multi Axis Load Cell F3G is designed to measure force in Fx/Fy/Fz at the same time,each axis is able to measure force in both tension and compression direction with 0-4.5 lb / 0-6.7lb / 0-11lb / 0-22 lb / 0-45lb / 0-67lb / 0-112 lb / 0-225lb eight measuring ranges to choose from.Very low profile design with total 26mm height makes F3G suitable for 3-axis force measurement where mounting space is limited.Typical applications for this 3-Axis Force Sensor F3G are for example force exertion control in robotics, force simulators, automotive testing & controlling, industrial test benches, grinding force control, actuator operating force measurement and so on.

200lb 3 axis load cell 100lb

Ordering code of 3-axis load cell F3G

Ordering code	Capacity		Material
Ordering code	Fx=Fy	Fz	Material
F3G-20N	20N	20N	Aluminum alloy
F3G-20-20-30	20N	30N
F3G-30N	30N	30N
F3G-30-30-50	30N	50N
F3G-50N	50N	50N
F3G-50-50-100	50N	100N
F3G-100N	100N	100N	Stainless steel
F3G-100-100-200	100N	200N
F3G-200N	200N	200N
F3G-200-200-300	200N	300N
F3G-300N	300N	300N
F3G-300-300-500	300N	500N
F3G-500N	500N	500N
F3G-500-500-1k	500N	1kN
F3G-1kN	1kN	1kN

Specifications

Rated Capacity	20N / 2kgf / 4.5lbf 30N / 3kgf / 6.7 lb 50N / 5kgf / 11 lb 100N / 10kgf / 22lb 200N / 20kgf / 45 lb 300N / 30kgf / 67 lb 500N / 50kgf / 112lb 1000N / 100kgf / 225lb
Sensitivity	1.0mV/V
Excitation	3-15V
Zero balance	±0.05mV/V
Non-linearity	±0.2% of the capacity
Hysteresis	±0.2% of the capacity
Non-repeatability	±0.1% of the capacity
Creep(5min)	±0.05% of the capacity
Safe overload	150% of the capacity
Ultimate overload	200% of the capacity
Compensated temperature	0...+40^oC
Operating temperature	-10...+60^oC
Temperature shift on zero	±0.03% R.O./^oC
Temperature shift on span	±0.02% R.O./^oC
Input resistance	385±50 ohms
Output resistance	350±10 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP62
Material of element	<100N Aluminum alloy >50N Stainless steel
Cable	Ø6*3000mm 12-wire shielded cable
Wiring code	4-wire connection for each axis

Multi-axis force sensor F3G consists of 3 wheatstone full bridges,one in each channel to deliver mV/V output proportional to the applied force,the output range of F3G is normally within -15mV...+15mV, multi-channel load cell amplifier LC3A can be used to convert the mV signal into 0-5V / 0-10V / 4-20mA for easy signal processing.Taking F3G-500N and LC3A(-5-5V)-24V for example,the force-voltage relationship will be 0-500N load in Fx+/Fy+/Fz+ direction VS 0-5V output, 0-500N in Fx-/Fy-/Fz- direction VS 0-(-5V) output.

Multi Axis Load Cell 200lb 100lb 50lb 20lb 10 lbs 3-Axis Force Sensor
100lb 3 axis load cell 50lb
Click here to download datasheet
