Compression Force Transducer 200klb 100klb 50klb Compression Force
Measurement Sensor

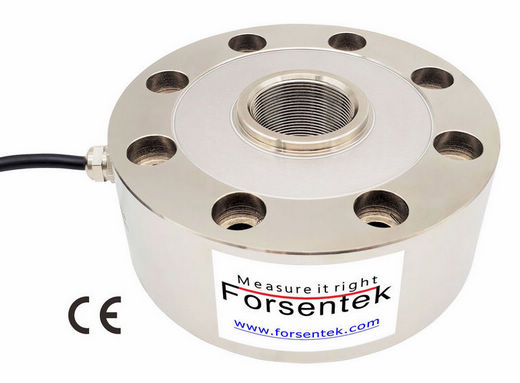

M16/M32/M40/M60 threaded Compression Force Transducer FCM is made
of high stiffness alloy steel based on foil strain gauge technology
to deliver 2.0mV/V rated output proportional to the applied
force.Pancake load cell FCM offers 0-1.1klb / 0-2.2klb / 0-4.4klb / 0-6.6klb / 0-11klb / 0-15klb / 0-22klb / 0-44klb / 0-55klb / 0-66klb / 0-110klb / 0-132klb / 0-220klb thirteen measuring ranges to choose from. Compressive load cell
FCM is suitable for both static and dynamic force measurement in
tension and compression direction.Low profile structure makes it
also suitable for in-line force monitoring.Pancake loadcell FCM is
designed with a metric threaded hole running through the center of
the transducer which can be used to mount attachments such as load
buttons,eye bolts or other adapters for force loading,this makes
spoke type load cells very adaptable to various cases, you may find
pancake type load cell FCM applicable for force measurement in
injection-molding machines, press machines and material testing
equipment, weight measurement for tanks, vessels and hoppers, and
so on. Custom made service is available if you need different
dimensions or capacities.
Specifications
| Rated capacity | 0.5ton / 5kN / 1.1klb 1 ton / 10kN / 2.2klb 2ton / 20kN / 4.4klb 3 ton / 30kN / 6.6 klb 5ton / 50kN / 11 klb 7 ton / 70kN / 15 klb 10ton/ 100kN / 22 klb 20 ton / 200kN / 44klb 25ton / 250kN / 55klbf 30 ton / 300kN / 66 klb 50ton / 500kN / 110klbf 60 ton / 600kN / 132klb 100ton / 1000kN / 220klbf |
| Rated output | 2.0±10%mV/V |
| Excitation | 3-15V |
| Zero balance | ±2% of R.O. |
| Nonlinearity | ±0.05% of R.O. (≥30t ±0.1% R.O.) |
| Hysteresis | ±0.05% of R.O. (≥30t ±0.1% R.O.) |
| Nonrepeatability | ±0.05% of R.O. (≥30t ±0.1% R.O.) |
| Creep(10min) | ±0.03% of R.O. |
| Safe overload | 150% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./10oC |
| Temperature shift span | ±0.05% R.O./10oC |
| Input resistance | 385±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP66 |
| Material of element | Alloy steel |
| Cable | Ø5*3000mm 4-wire |
| Wiring code | Red--Excitation+ Black--Excitation-
Green--Signal+ White--Signal- |
A load cell sensor is a transducer that converts a load or force
acting on it into electronic signal which is proportional to the
load(or force) being applied.The measured load or force causes
deformation of the measuring element(elastic body),the bonded
strain gauge deforms accordingly which will cause the resistance
change of the wheatstone bridge,under constant power supply,the
output signal between Sig+ and Sig- will change proportionally,thus
the load/force can be measured by measuring the output signal from
the load cell.
Pancake load cell FCM outputs millivolt signal which is normally
within 0-30mV,and signal amplification may be required for most
applications,a load cell signal transmitter can be used to get 0-5V,0-10V or 4-20mA signal for easy data acquisition afterwards.For
example: Compression load cell FCM-10t working with 0-10V
amplifier,the load-output relationship will be 0-10 ton load VS
0-10V output,when you get 5V output,it means the current load is
5ton...
Weight indicator can be used to display the measured value,load
cell display FPT is integrated with high accuracy 24 bit
Sigma-Delta ADC,sampling speed up to 960Hz,supports RS485 or RS232
communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA
amplified signal.
