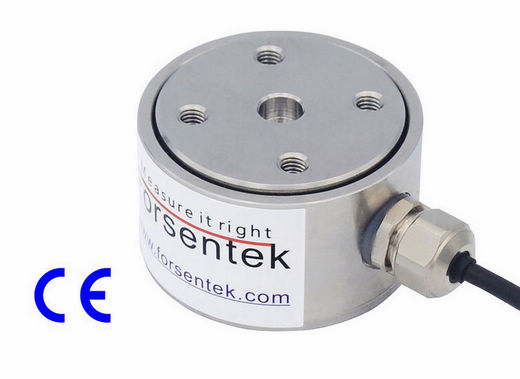

Flange Mounted Force Sensor 500lb 220lb 110 lbs 45lb Flange Type Load Cell

Flange Mounted Load Cell FFA is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of full scale.Tension Compression Force Sensor FFA offers 45lb / 112lb / 225lb / 450lbs / 1.12klb / 2.25klb / 4.5klb seven rated capacities to choose from, transducer FFA can be used for both tension and compression force measurement. Stainless steel construction, flange design, compact size, bidirectional force measurement, high accuracy, Flanged Load Cell FFA offers a perfect force measuring solution for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.

Dimensions(Unit in "mm")

Specifications

The output signal from the wheatstone bridge is normally within -30mV...+30mV. A load cell amplifier can be used to deliver -5~5V, 0-10V or 4-20mA output.

Example: Flange Load Cell FFA-2kN working with -10-10V amplifier,the Force-Voltage relationship will be 0-2kN compression load VS 0-10V output, 0-2kN tension load VS 0-(-10V) output,when you get 5V output,it means the current load is 1kN compression force,when you get -5V output,it means the current load is 1kN tension force,and so on.

Flange Mounted Force Transducer 500lb 220lb 110 lbs 45lb Flange Type Force Sensor

Click here to download datasheet
