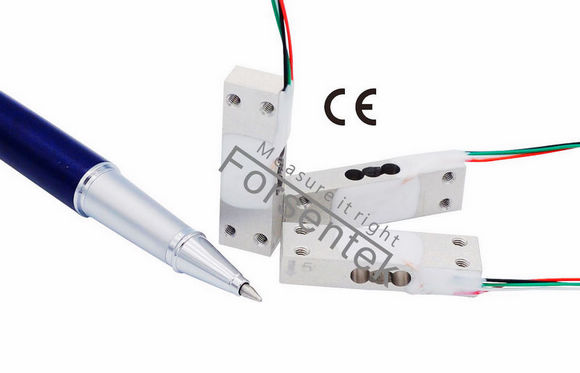

10kg Micro Single Point Load Cell 5kg Beam Type Weight sensor 2kg
Micro Single Point Load Cell FMZK is strain gauge based to deliver 1.0mV/V output from full
wheatstone bridge. Small load sensor FMZK offers 0.5kg / 1kg / 2kg / 3kg / 5kg / 6kg / 10kg seven measuring ranges to choose from,high accuracy with maximum
0.05% non-linearity of the full capacity.The 1000 ohms resistance
strain gauges used are more energy-efficient compared to common 350

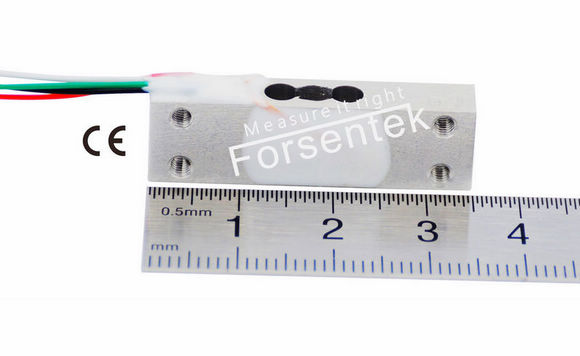

ohms gauges.The compact size and aluminum construction makes FMZK
weighs only about 5.3 grams which makes it suitable for portable
weighing devices.Small size weight sensor FMZK offers a perfect
mixture of small size,high accuracy and low cost,which makes
inexpensive loadcell FMZK suitable for weight monitoring in
consumer electronics.You may find Miniature Load Sensor FMZK applicable for home appliances, force simulators, process
control, robotics, automotive and so on. Forsentek is also capable
of and willing to provide custom made service if you cannot find
suitable weight/load/force measurement transducers from the
standard product portfolio.
Dimensions
Specifications
| Rated capacity | 0.5kg / 5N / 1.1lb 1kg / 10N / 2.2 lb 2kg / 20N / 4.4lb 3kg / 30N / 6.6 lb 5kg / 50N / 11 lb 6kg / 60N / 13.2lb 10kg / 100N / 22 lb |
| Rated output | 1.0 mV/V |
| Excitation | 3-10 V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.05% of full capacity |
| Hysteresis | ±0.05% of full capacity |
| Nonrepeatability | ±0.05% of full capacity |
| Creep(3min) | ±0.05% of full capacity |
| Safe overload | 120% of full scale |
| Ultimate overload | 200% of full scale |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.03% of R.O./oC |
| Temperature shift span | ±0.02% of R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Cable | 32AWG*170mm(Longer cable available) |
| Wiring code | Red--Excitation+ Black--Excitation-
Green--Signal+ White--Signal- |
Small size load cell sensor FMZK is a transducer that converts
mechanical force into electrical signal proportional to the applied
force or weight.The measured load or force causes deformation of
the measuring element(elastic body),the bonded strain gauge deforms
accordingly which will cause the impedance variation of the
wheatstone bridge,under constant power supply, the output signal
changes proportionally, thus the weight or force can be measured by
measuring the output signal from the load cell.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of beam type weight sensor FMZK is around 1.0mV/V.
Power supply of miniature weight transducer FMZK is normally within
3-10V.
Load / Capacity is within 0-1.
So the output range of micro loadcell FMZK is normally within
0-10mV.
Example one: Small size Single Point Load Cell FMZK-5kg with
1.0mV/V powered by 3.3V DC,the output range is 0~3.3mV.
Example two: Miniature beam type weight sensor FMZK-10kg with 1.0mV/V powered by
5V DC,the output range is 0~5mV.
