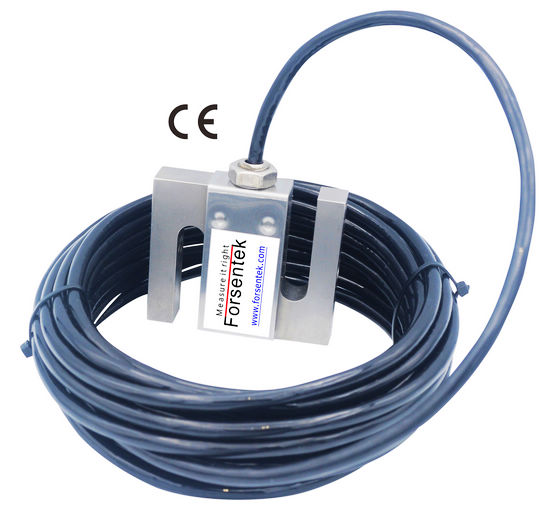

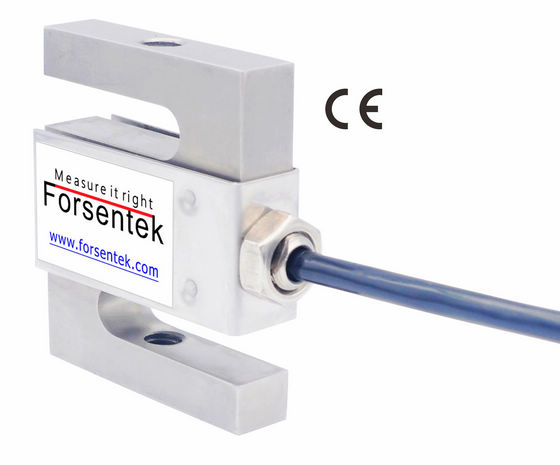

S Beam Tension Load Cell 20klb 10klb 5klb 2klb 1klb 500lb 200lb 100lb 50lb

Stainless steel S Beam Load Cell FSRG is made based on strain gauge technology with unified 3.0mV/V output intended for both tension and compression force measurement, Model FSRG offers 50lb / 100lb / 150lb / 200lb / 250lb / 300lb / 500lb / 1klb / 1.5klb / 2klb / 2.5klb / 3klb / 5klb / 10klb / 15klb / 20klb sixteen rated capacities to choose from. High accuracy with maximum 0.02% non-linearity of the full scale. Universal s-beam load cell FSRG is hermetically sealed to IP67 with both metric and imperial threads available. S-type Tension Load Cell Force Sensor FSRG is applicable for rope and chain strength testing,bagging machines,material testing machines,hanging scales,hoppers weighing applications.You may find transducer FSRG interchangeable with Siemens SIWAREX WL250 ST-S SA,VPG Revere 9363, Artech model SS 20210, Rice Lake RL20000ST, ptglobal PT4000, Rice Lake RL20000SS, VPG Sensortronics 60050 with lower cost but uncompromised quality.

Dimensions(in milimeter)

Specifications

S Beam Tension Load Cell Force Sensor 20klb 10klb 5klb 2klb 1klb 500lb 200lb 100lb 50lb

Click here to download datasheet

Located in China,Forsentek Co., Limited has provided load cells,force sensors and measuring solutions to more than 30 countries all over the world.

At Forsentek,you can find universal products like:

• Compression load cell
• Force sensor force transducer
• Button load cell
• Micro load cell
• Strain gauge load cell
• Reaction torque sensor
• Rotary torque sensor

Forsentek is also an expert in customized force measurement products like:

Load pins for overload protection.

Bolt sensor for fastening force monitoring.

With experienced engineers in load cell and force sensor application field,Forsentek knows exactly what you need after you talk to us.Being expert in strain gauge based load cell manafuacturing technology and custom-made service,we are confident in providing the most suiablt products to meet your application perfectly.

Send us an inquiry,we'll get back with solutions.
