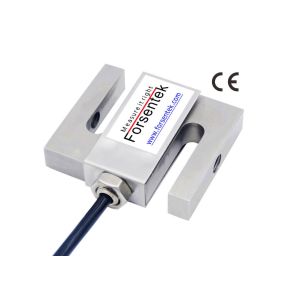

Tesnion/Compression S Type Load Cell 50lb 100lb 200lb 500lb 1klb 2klb 5klb 10klb 20klb

Stainless steel S Type Load Cell FSRG is made based on strain gauge technology with unified 3.0mV/V output intended for both tension and compression force measurement, Model FSRG offers 50lb / 100lb / 150lb / 200lb / 250lb / 300lb / 500lb / 1klb / 1.5klb / 2klb / 2.5klb / 3klb / 5klb / 10klb / 15klb / 20klb sixteen rated capacities to choose from. High accuracy with maximum 0.02% non-linearity of the full scale. Universal s-beam load cell FSRG is hermetically sealed to IP67 with both metric and imperial threads available. S-beam Force Sensor FSRG is applicable for rope and chain strength testing,bagging machines,material testing machines,hanging scales,hoppers weighing applications.You may find transducer FSRG interchangeable with Siemens SIWAREX WL250 ST-S SA,VPG Revere 9363, Artech model SS 20210, Rice Lake RL20000ST, ptglobal PT4000, Rice Lake RL20000SS, VPG Sensortronics 60050 with lower cost but uncompromised quality.

Dimensions(in milimeter)

Specifications

Stainless S Type Load Cell 50lb 100lb 200lb 300lb 500lb 1klb 2klb 3klb 5klb 10klb 20klb

Click here to download datasheet
