Reaction Torque Transducer with 3/4" Square Torque Sensor 500Nm 200N-m 100N*m 50N*m

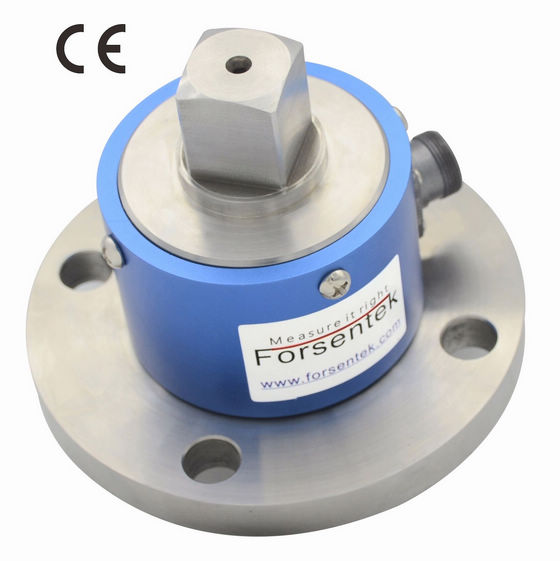

3/4 inch Square Torque Sensor FT04 is a non-rotating type torque cell that converts a torsional mechanical input into an electrical output signal, reaction torque transducer FT04 is made of stainless steel based on strain gauge technology supporting torque measurement in both clockwise and anticlockwise direction with 20N*m / 50N-m / 100N*m / 200Nm / 300N*m / 500N-m six rated capacities to choose from. Square drive torque wrench calibration tool FT04 offers a unique solution for auditing and calibrating mechanical torque wrenches where the flange can be mounted to the bench and the 3/4" square can accept sockets.Torque cell FT04 can also be modified or customized as per client's request.
​
Dimensions(Unit in "mm")

Specifications

Reaction torque sensor is a transducer that converts mechanical torque into mV signal proportional to the applied torque.The acting torsion causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the moment can be measured by measuring the output signal from the transducer.The output range of Square Torque Transducer FT04 is normally within -22.5mV...+22.5mV, signal amplification may be required for most applications, a signal conditioner can be used to get -5~5V, 0-10V or 4-20mA output for easy data processing.Taking FT04-500Nm and FSC(-5-5V)-24V for example,the torque-voltage relationship will be 0-500Nm torque in clockwise direction VS 0-5V output, 0-500N*m torque in CCW direction VS 0-(-5V) output.

3/4" Square Reaction Torque Transducer 500N*m 200Nm 300N*m 100N-m 50Nm 20N*m

Click here to download datasheet
