S-Beam Tension Compression Load Cell 5kg 10kg 20kg 30kg 50kg 100kg 200kg 300kg

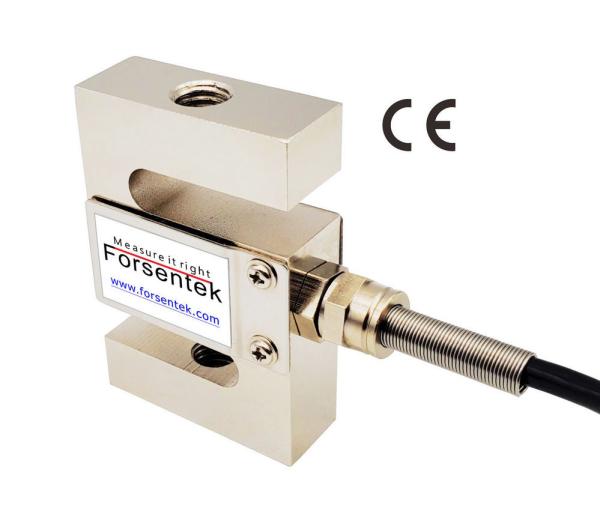

S Type Tension Compression Load Cell FS6A/FS6B is strain gauge based intended for tension and compression force measurement.S beam load cell FS6A/FS6B offers 0-5kg / 0-10kg / 0-20kg / 0-30kg / 0-50kg / 0-100kg / 0-200kg / 0-300kg eight rated measuring ranges to choose from. M8/M12 metric threaded holes located on both ends can be used to mount attachments such as eye bolts and hooks to adapt to different cases. S Type Force Sensor FS6A/FS6B offers an accurate and affordable measuring solution for applications such as material testing machines, hanging scales, hopper weighing, automation equipments, and so on.

Dimensions

Specifications

S-Type Load Cell is also known as s-beam load cell because of its feasured s beam structure,s-type force sensor is able to measure both tension force and compression force.The sensor can convert load or force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally, thus the load/force can be measured by measuring the output signal from the load cell.S-type load cell FS6A/FS6B outputs millivolt signal ranging -30mV...+30mV, and signal amplification may be needed for most applications, a load cell signal conditioner can be used to get -5~5V, 0-10V or 4-20mA signal which is proportional to applied force.The amplified output is can be easily processed by PLCs and data acquisition software.The applied force can be displayed through a load cell indicator,force indicator FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement; FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.

Click here to download datasheet

Located in China,Forsentek Co., Limited has provided load cells,force sensors and measuring solutions to more than 30 countries all over the world.

At Forsentek,you can find universal products like:

• Compression load cell
• Force sensor force transducer
• Button load cell
• Micro load cell
• Strain gauge load cell
• Reaction torque sensor
• Rotary torque sensor

Forsentek is also an expert in customized force measurement products like:

Load pins for overload protection.

Bolt sensor for fastening force monitoring.

With experienced engineers in load cell and force sensor application field,Forsentek knows exactly what you need after you talk to us.Being expert in strain gauge based load cell manafuacturing technology and custom-made service,we are confident in providing the most suiablt products to meet your application perfectly.

Send us an inquiry,we'll get back with solutions.
