Micro Tension Compression Load Cell 1kg 2kg 5kg 10kg 20kg 50kg 100kg

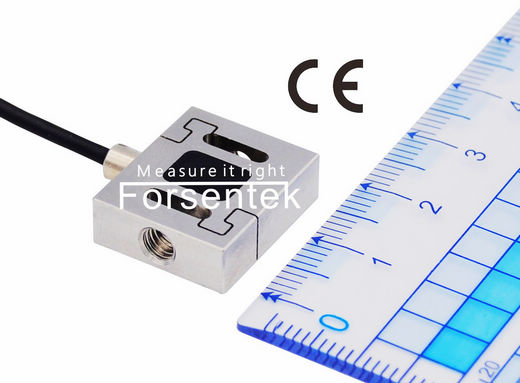

Miniature Tension And Compression Load Cell FSSM offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, and a wide capacity range from 10N to 1000N to choose from.The mini load cell FSSM utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity of full scale,the compact design enables Micro Force Sensor FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The sensor features threaded holes on two sides for the mounting of attachments or implements,this micro force sensor can be used for both tension and compression force measurement in applications with limited space.You may find junior S beam load cell FSSM interchangeable with FUTEK load cell LSB200,Mark Miniature Force Sensors Series R04,flintec s-beam force sensor ISA,flintec load cell ISB,etc..In addition to the standard specifications,model FSSM can also be modified or customized to better fit clients' applications.

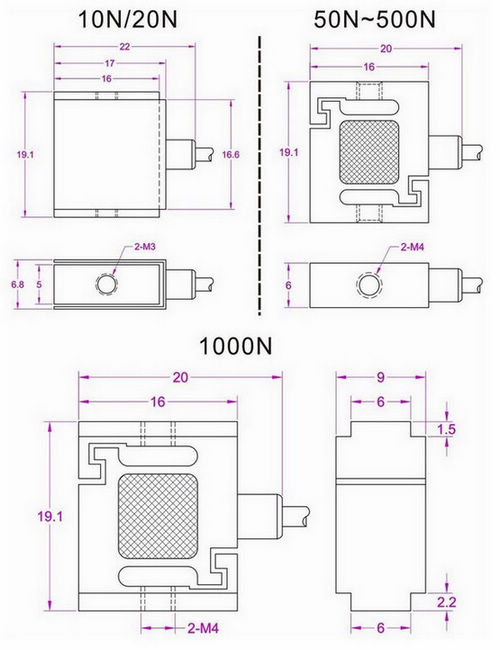

Dimensions(in milimeter)

Specifications

Miniature Force Transducer FSSM outputs mV signal from the full wheatstone bridge which is proportional to the applied load,a load cell amplifier can be used to convert mV signal into -5-5V / 0-10V / 4-20mA for easy signal processing,taking FSSM-20N and FSC(-10-10V)-24V for example,the load-voltage relationship will be 0-20N compression load VS 0-10V output, 0-20N tension load VS 0-(-10V) output,5V voltage corresponds to 10N compression load, -1V voltage corresponds to 2N tension force,and so on.

Miniature Tension Compression Load Cell 1kg 2kg 5kg 10kg 20kg 50kg 100kg

Click here to download datasheet
