Inline Load Cell 10t 20ton Compression And Traction Load Cell 50
ton 100t 200t
Threaded Inline Type Rod End Load Cell FLB is made of high
stiffness alloy steel based on strain gauge technology intended for
both traction and compression force measurement. In-line load cell
FLB is designed to be mounted inline to the load axis with rugged
structure for industrial applications. The Tension Compression

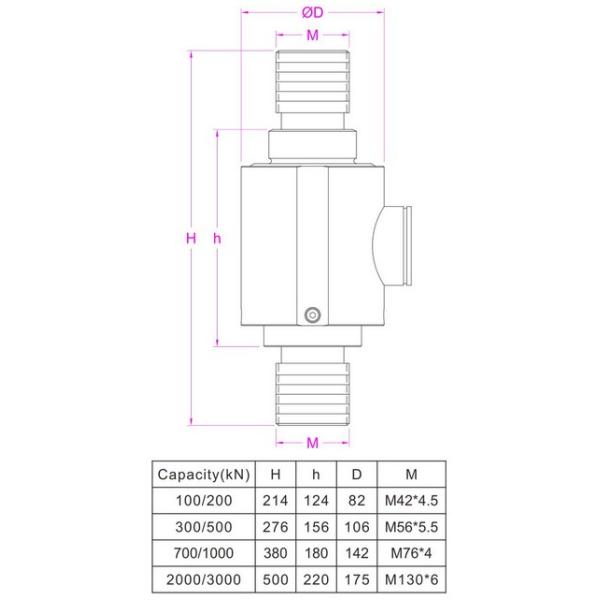

Sensor FLB can be easily mounted to existing system through the
threaded rods located on both sides of the transducer, these metric
threads can also be used to mount attachments, such as female eye
bolt, bolt adapter and so on to fit different usage requirements.
Tension Compression Sensor FLB offers 0-10ton / 0-20ton / 0-30ton /
0-50ton / 0-70ton / 0-100ton / 0-200ton / 0-300ton eight rated
measuring ranges, each sensor is integrated with a 6-meter-long
4-core shielded cable. Inline Type Force Transducer FLB is normally
used for press-in force measurement, cylinder thrust measurement,
hydraulic press, material testing machines, general process control
and so on.
| Ordering code | Measuring Range | Force direction |
| FLH-100kN | 0-100kN / 0-10 ton | Traction and Compression |
| FLH-200kN | 0-200kN / 0-20 ton |
| FLH-300kN | 0-300kN / 0-30 ton |
| FLH-500kN | 0-500kN / 0-50 ton |
| FLH-700kN | 0-700kN / 0-70 ton |
| FLH-1000kN | 0-1000kN / 0-100 ton |
| FLH-2000kN | 0-2000kN / 0-200 ton |
| FLH-3000kN | 0-3000kN / 0-300 ton |
Specifications
| Rated capacity | 100kN / 10ton / 22.4klb 200kN / 20ton / 45klb 300kN / 30ton / 67klbf 500kN / 50ton / 112klbs 700kN / 70ton / 157klbf 1000kN / 100ton / 225klb 2000kN / 200ton / 450klb 3000kN / 300ton / 674klb |
| Rated output | 2.0mV/V |
| Excitation | 5-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% of R.O. >1000kN: ±0.3% of R.O. |
| Hysteresis | ±0.1% of R.O. >1000kN: ±0.3% of R.O. |
| Nonrepeatability | ±0.1% of R.O. >1000kN: ±0.2% of R.O. |
| Creep(5min) | ±0.05% of R.O. |
| Safe overload | 120% of F.S. |
| Ultimate overload | 150% of F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./10oC |
| Temperature shift span | ±0.05% R.O./10oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Alloy steel |
| Cable | Ø5.8*6000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation-
Green--Signal+ White--Signal- |
A Force Sensor is a transducer that converts mechanical load into
mV signal proportional to the applied force.The acting force causes
deformation of the measuring element,the bonded strain gage deforms
accordingly which will cause the resistance change of the
wheatstone bridge,under constant power supply, the output signal
between Sig+ and Sig- will change proportionally,thus the
load/force can be measured by measuring the output signal from the
transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Rod End Force Sensor FLB is around 2.0mV/V.
Power supply of Compression/Tension Force Transducer FLB is
normally within 5-15V.
Load / Capacity is within 0-1.
So the output range of Threaded In-line Load Cell FLB is normally
within -30mV...+30mV for bidirectional force measurement.
Example: Traction and compression load cell FLB-500kN with 2.0mV/V
sensitivity powered by 10V DC ,the output range is -20mV...+20mV.
A signal conditioner can be used with force transducer FLB to
deliver -5~5V, 0-10V or 4-20mA output.
Example: Push/pull load cell FLB-100kN working with -10-10V
amplifier,the Force-Voltage relationship will be 0-100kN
compression load VS 0-10V output, 0-100kN traction load VS 0-(-10V)
output, which is linear regardless of the measurement error. When
you get 5V output, it means the current load is 50kN compression
force, when you get -1V output, it means the current load is 10kN
traction load.
Inline Load Cell 10t 20ton Compression And Traction Load Cell 50
ton 100t 200t
