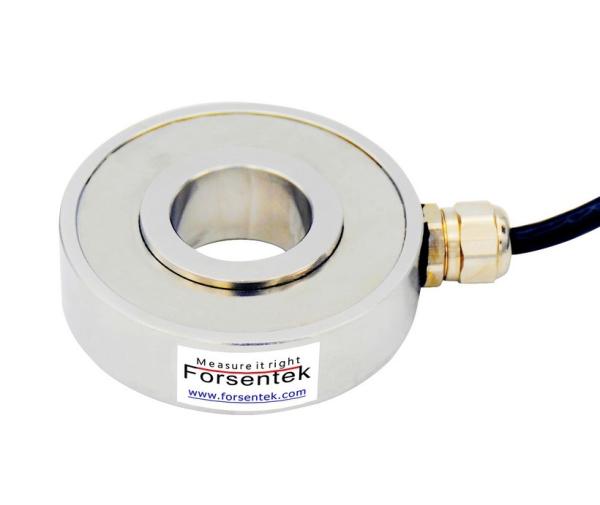

Donut Load Cell 10kg 20kg 50kg Force Washer Load Cell 100kg 200kg
500kg
Force Washer Load Cell FDBA is made of stainless steel based on strain gauge technology
to deliver maximum 0.5% non-linearity of the rated capacity
intended for fastening force measurement. Donut Load Cell FDBA
offers a wide measuring ranges from 10kgf to 15ton.Hollow type load
cell FDBA features a thru-hole located at the center of the
transducer, so the load structure can pass through the sensor,
which makes hollow force transducer FDBA an excellent option for
tightening force measurement. Clamping force load cell FDBA can
also be modified or customized upon request.
Specifications
| Capacity | 10kg / 20kg / 50kg / 100kg / 200kg / 300kg / 500kg 1 ton / 2 ton / 3 ton / 5 ton / 10 ton / 15ton |
| Rated output | 1.5 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.5% R.O. |
| Hysteresis | ±0.5% R.O. |
| Nonrepeatability | ±0.2% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 750±50 ohms |
| Output resistance | 700±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |

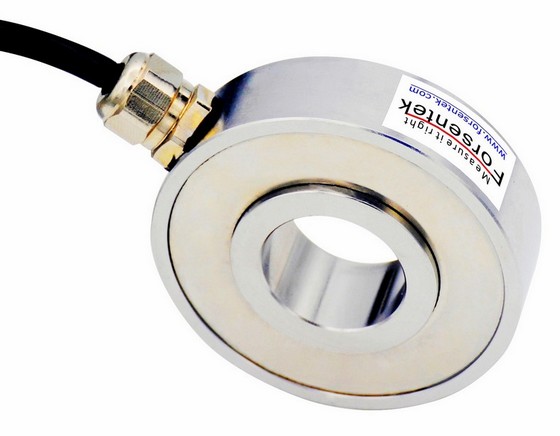

Donut Load Cell 10kg 20kg 50kg Force Washer Load
Cell 100kg 200kg 500kg
Output signal of load cell FDBA:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Force Washer Load Cell FDBA is normally around
1.5mV/V.
Power supply of Washer Type Force Sensor FDBA is normally within
3-15V.
Load / Capacity is within 0-1.
So the output range of Clamping Force Transducer FDBA is normally
within 0…+22.5mV.
Example one: Through Hole Load Cell FDBA-100kg with 1.5mV/V
sensitivity powered by 10V DC,the output range is 0mV...+15mV.
Example two: Hollow Type Load Cell FDBA-200kg with 1.5mV/V rated
output powered by 5V DC,the output range is 0mV...+7.5mV.
The mV/V output from the wheatstone bridge sometimes can hardly be
processed directly, a signal conditioner can be used with the load
cell to deliver 0~5V, 0-10V or 4-20mA output.
Example: Washer Type Load Cell FDBA-500kg working with amplifier
FSC(0-5V)-24V, the Load-Voltage relationship will be 0-500kgf
clamping force VS 0-5V output, which is linear regardless of the
measurement error, 1V output corresponds to 100kgf load, 2V output
corresponds to 200kgf force, and so on.
Thru-hole Loadcell FDBA can also work with digital indicator FPT to
deliver below functions:
-Display force value in real time
-Peak holding to grab the maximum force during testing
-RS485 or RS232 interface
-0-5V/0-10V/4-20mA analog output
-Switch output
Donut Load Cell 10kg 20kg 50kg Force Washer Load Cell 100kg 200kg
500kg
| Ordering code | Measurement Range | Force direction |
| FDBA-10kg | 0-100N / 0-22lbs | Compression |
| FDBA-20kg | 0-200N / 0-44lbs |
| FDBA-50kg | 0-500N / 0-110lbf |
| FDBA-100kg | 0-1kN / 0-220lbs |
| FDBA-200kg | 0-2kN / 0-440lbf |
| FDBA-300kg | 0-3kN / 0-660lbs |
| FDBA-500kg | 0-5kN / 0-1.1klb |
| FDBA-1t | 0-10kN / 0-2.2klbf |
| FDBA-2t | 0-20kN / 0-4.4klb |
| FDBA-3t | 0-30kN / 0-6.6klbf |
| FDBA-5t | 0-50kN / 0-11klb |
| FDBA-10t | 0-100kN / 0-22klbs |
| FDBA-15t | 0-150kN / 0-33klb |
