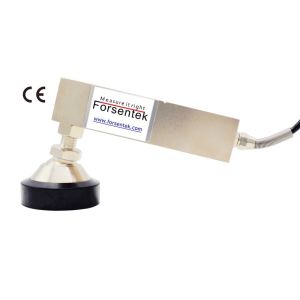

Single Ended Beam Load Cell 1klb 2klb 3klb 5klb 10klb Weight Sensor
Single ended beam load cell FH8C is made of alloy steel utilizing strain gauge technology,
high sensitivity with unified 3.0mV/V rated output. Single ended
weight sensor FH8C offers 220lb / 550lb / 1klb / 1.5klb / 2klb /
2.5klb / 3klb / 4klbf / 5klb / 7.5klb / 10klb / 20klb (100kg / 250kg / 500kg / 1000kg / 1500kg / 2000kg / 2500kg / 3000kg
/ 5000kg / 10000kg) rated capacities to choose from, loadcell sensor FH8C is
temperature compensated with maximum 0.02% non-linearity of the
full scale. High accuracy, competitive price, IP67 hermetically
sealed, you may find shear beam load cell transducer FH8C
applicable for platform scales, batch weighing, hopper scales,
garbage weighing system, medical bed weighing and so on.
Dimensions(Unit in milimeter)
Specifications
| Capacity | 100kg 250kg 500kgf 1t 1.5ton 2t 2.5t 3ton 5t 10t
220lb 550lb 1klb 1.5klbs 2klbf 2.5klb 3klbf 5klb 7.5klb 10klb 20klb |
| Rated output | 3.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.02% of capacity |
| Hysteresis | ±0.02% of capacity |
| Nonrepeatability | ±0.017% of capacity |
| Creep(30min) | ±0.02% of capacity |
| Safe overload | 150% of capacity |
| Ultimate overload | 250% of capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -35...+65oC |
| Temperature shift zero | ±0.02% R.O./10oC |
| Temperature shift span | ±0.02% R.O./10oC |
| Input resistance | 350±10 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP67 |
| Material of element | Nickel-plated alloy steel |
| Cable | 0.5-2t Ø5x4000mm 4-core shielded cable
Other capacities Ø5x6000mm 4-core shielded cable |
| Wiring code | Red-Excitation+ Black-Excitation- Green-Signal+ White-Signal- Yellow-Shield |
Single Ended Beam Load Cell 1klb 2klb 3klb 5klb 10klb Weight Sensor
A load cell (or loadcell) is a transducer which converts force into
a measurable electrical output. Strain gauge based load cells are
the most commonly used type and suitable for almost all industrial
applications. Strain gauge load sensors contain wheatstone bridge
within them to deliver mV output signal which is proportional to
the applied load/force under constant power supply, thus the
load/force can be measured by measuring the output signal from the
transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
The rated output of weight transducer FH8C is around 3mV/V.
The power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the output signal range of loadcell FH8C is normally within
0...+45mV.
Example one: Single Ended Beam Load Cell FH8C-5klb with 3.0mV/V
rated output powered by 10V DC, the output range is 0...+30mV.
Example two: Shear Beam Load Cell FH8C-10klb with 3.0mV/V rated
output powered by 5V DC, the output range is 0...+15mV.
