Miniature Tension Compression Load Cell 200kg 300kg 500kg With M8
Threaded Rod

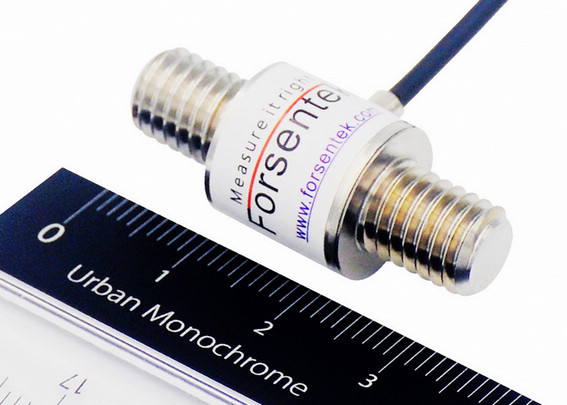

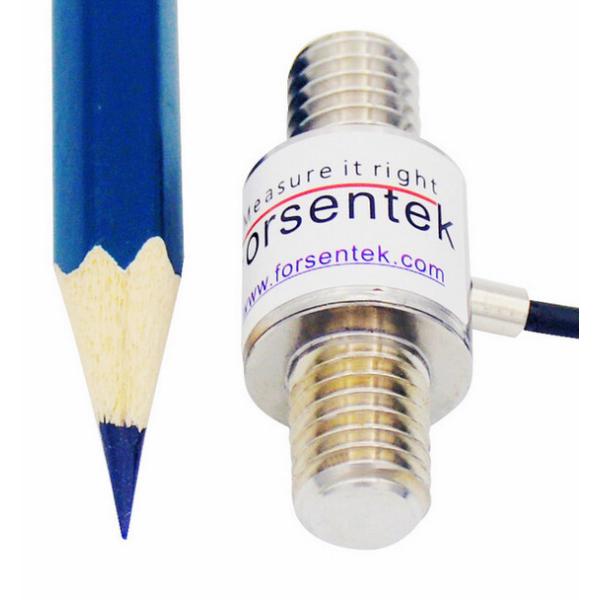

Miniature Tension Compression Load Cell FLN is made of stainless steel based on strain gauge technology
with mV/V output, threaded inline load cell FLN offers 0-5kg /
0-10kg / 0-20kg / 0-50kg / 0-100kg / 0-200kg / 0-300kg / 0-500kg eight rated measuring ranges to choose from. M8/M4 threaded rods located
on both end can be used to install attachments,such as eye
bolt,bolt adapter,etc.,to fit requirement of different
applications.Compact size makes in-line load cell FLN applicable
for tension and compression force measurement applications where
mounting space is limited.
A force sensor is a transducer that converts force acting on it
into electronic signal which is proportional to the applied
force.The acting force causes deformation of the measuring
element,the bonded strain gage deforms accordingly which will cause
the resistance change of the wheatstone bridge,under constant power
supply,the output signal between Sig+ and Sig- will change
proportionally,thus the force can be measured by measuring the
output signal from the load cell. Miniature Tension And Compression
Load Cell FLN is designed to measure force in both tension and
compression direction,outputs millivolt signal ranging
-12mV...+12mV, and signal amplification may be required for most
applications, a load cell signal conditioner can be used to get
-5-5V, 0-10V or 4-20mA signal proportional to applied force. The
amplified output then can be easily processed by PLCs and data
acquisition software.The force can be displayed through force
indicator, force meter FPT is integrated with high accuracy/low
noise 24 bit Sigma-Delta ADC, sampling speed up to 960Hz makes it
suitable for both static and dynamic measurement; FPT also supports
Modbus RTU protocol with RS485 or RS232 communication port,
amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable
from FPT.
| Ordering code | Measurement Range | Force direction |
| FLN-5kg | 0-50N / 0-5kgf | Tension/compression |
| FLN-10kg | 0-100N / 0-10kgf |
| FLN-20kg | 0-200N / 0-20kgf |
| FLN-50kg | 0-500N / 0-50kgf |
| FLN-100kg | 0-1kN / 0-100kgf |
| FLN-200kg | 0-2kN / 0-200kgf |
| FLN-300kg | 0-3kN / 0-300kgf |
| FLN-500kg | 0-5kN / 0-500kgf |
Specifications
| Capacity | 50N / 100N / 200N / 500N / 1kN / 2kN / 3kN / 5KN
5kg / 10kg / 20kg / 50kg / 100kg / 200kg / 300kg / 500kg |
| Rated output | 1.0mV/V |
| Excitation | 3-12 V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±1% of rated capacity |
| Hysteresis | ±1% of rated capacity |
| Nonrepeatability | ±0.5% of rated capacity |
| Creep(3min) | ±0.3% of rated capacity |
| Safe overload | 120% of rated capacity |
| Ultimate overload | 150% of rated capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.05% R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±100 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP66 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |

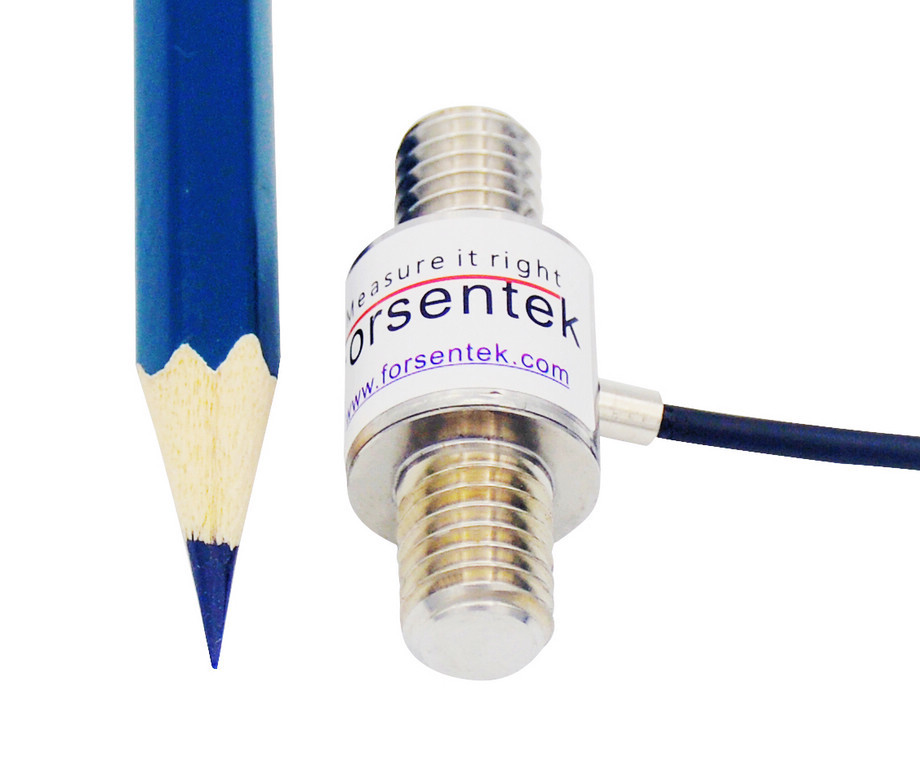

Miniature Tension Compression Load Cell 200kg 300kg 500kg With M8
Threaded Rod
Instruction of load cell output:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Miniature Traction Compression Force Sensor FLN is
around 1.0mV/V.
Power supply of Mini Load Cell FLN is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of Miniature Inline Load Cell FLN is normally
within -12mV...+12mV for tension/compression force measurement.
Example: Miniature Push Pull Load Cell FLN-300kg with 1.0mV/V
sensitivity powered by 5V DC,the output range is -5mV...+5mV.
A signal conditioner can be used with the load cell to deliver
-5~5V, 0-10V or 4-20mA output.
Example one: Miniature Tension Compression Sensor FLN-200kg working
with -10-10V amplifier, the Force-Voltage relationship will be
0-200kg compression load VS 0-10V output, 0-200kg tension load VS
0-(-10V) output, which is linear regardless of the error, 1V output
corresponds to 20kg compression force, -2V output corresponds to
40kg tension force, and so on.
Example two: Miniature Traction And Compression Load Cell FLN-500kg
working with 4-12-20mA amplifier, the Force-Current relationship
will be 0-500kg compression load VS 12-20mA output, 0-500kg tension
load VS 12-4mA output, which is linear regardless of the error,
12.8mA output corresponds to 50kg compression load, 8mA output
corresponds to 250kg tension load, and so on.
