M4 Threaded Miniature Compression Load Cell 100kg 50kg 20kg 10kg

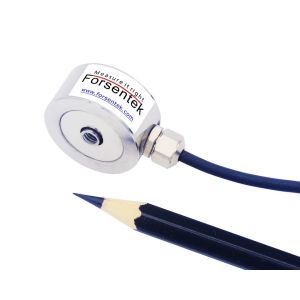

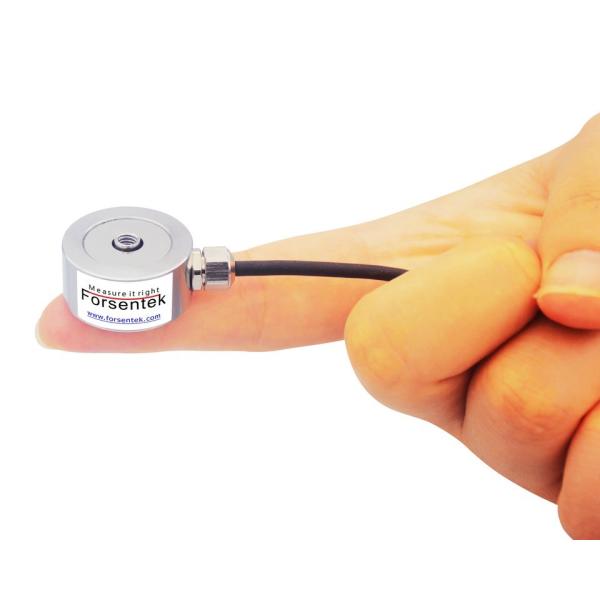

Miniature Compression Load Cell FCU is made from stainless steel based on strain gauge technology delivering unamplified mV output which is proportional to the load applied. Small Size Pancake Load Cell FCU offers 0-100N / 0-200N / 0-500N / 0-1000N four rated measuring ranges intended for both tension and compression force measurement. The miniature load cell FCU features a M4 tapped hole at the center of the transducer which can be used to mount attachments such as load buttons or eye bolts to fit different applications. Micro Load Cell FCU is applicable for both static and dynamic force measurement. Model FCU can also be modified or customzied as per requirements of our clients.

Dimensions

Specifications

M4 Threaded Miniature Compression Load Cell 100kg 50kg 20kg 10kg

Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output of miniature compression load cell FCU is normally around 1.5mV/V.
Power supply of small compression sensor FCU is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of miniature force sensor FCU is normaly within -18mV...+18mV.
Example: Miniature Load Cell FCU-100N with 1.5mV/V power by 10V DC,the output range is -15mV...+15mV proportional to the applied force.
Load cell + Signal amplifier:
The mV output from the loadcell transducer sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Compression Force Load Cell FCU-500N working with 0-5V amplifier,the load-output relationship will be 0-500N compressive load VS 0-5V output,0V output corresponds to 0N, 1V output corresponds to 100N compression load, 2V output corresponds to 200N load,and so on.

M4 Threaded Miniature Compression Load Cell 100kg 50kg 20kg 10kg

Click here to download datasheet
