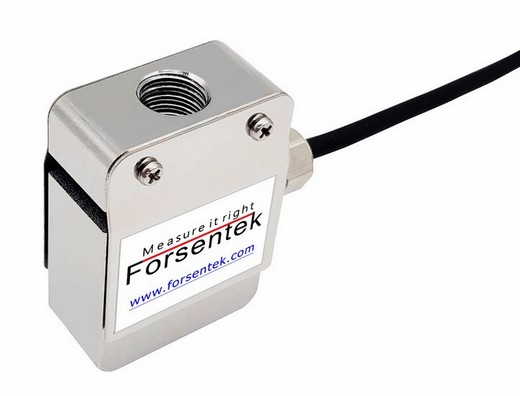

Compression And Tension Load Cell With M8 Mounting Hole
M8 Threaded Tension Compression Sensor FSKE is made of stainless steel based on metal foil strain gauge
technology intended for both traction and compression force
measurement. Compression Traction Force Sensor FSKE offers 50N /
100N / 200N / 500N / 1000N / 2000N six rated capacities with
maximum 0.1% non-linearity of the full scale. M8 tapped holes
located on both ends can be used to mount attachments like load
button, eye bolts, hooks to fit different applications. Compact
design makes force transducer FSKE a perfect option for force
measurement applications with limited mounting space,you may find
miniature force transducer FSKE applicable for spring tension test,
mechanical simulation experiment, automation equipment, push-pull
force gauge, and so on. Model FSKE can also be modified or
customized as per request.
Dimensions
Ordering code of tension compression load cell FSKE
| Ordering code | Measuring Range | Force direction |
| FSKE-50N | 0-100N / 0-10kgf | Traction and Compression |
| FSKE-100N | 0-100N / 0-10kgf |
| FSKE-200N | 0-200N / 0-20kgf |
| FSKE-500N | 0-500N / 0-50kgf |
| FSKE-1kN | 0-1000N / 0-100kgf |
| FSKE-2kN | 0-2000N / 0-200kgf |
Specifications
| Rated Capacity | 50N / 100N / 200N / 500N / 1000N / 2000N
5kg / 10kg / 20kg / 50kg / 100kg / 200kg
10lb / 20lb / 45lb / 110lb / 220lbs / 440lbf |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% of rated capacity |
| Hysteresis | ±0.1% of rated capacity |
| Nonrepeatability | ±0.05% of rated capacity |
| Creep(5min) | ±0.05% of rated capacity |
| Safe overload | 150% of rated capacity |
| Ultimate overload | 200% of rated capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% of R.O./oC |
| Temperature shift span | ±0.02% of R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP64 |
| Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded |
| Wiring code | Compression@
Red--Excitation Input+ Black--Excitation Input- Green--Signal Output+ White--Signal Output- |
Compression And Tension Load Cell 2kN 1kN 500N 200N 100N With M8
Mounting Hole
A Force Sensor is a transducer that converts mechanical load into
mV signal proportional to the applied force.The acting force causes
deformation of the measuring element,the bonded strain gage deforms
accordingly which will cause the resistance change of the
wheatstone bridge,under constant power supply, the output signal
between Sig+ and Sig- will change proportionally,thus the
load/force can be measured by measuring the output signal from the
transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Tension
Compression Load Cell FSKE is around 2.0mV/V.
Power supply of Push Pull Load Cell FSKE is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Compression Traction Force Sensor FSKE is
normally within -30mV...+30mV.
Example: Compression And Traction Force Transducer FSKE-500N with
2.0mV/V sensitivity powered by 5V DC,the output range is
-10mV...+10mV
A signal conditioner can be used with the load cell to deliver
-5~5V, 0-10V or 4-20mA output.
Example: Push Pull Force Sensor FSKE-1kN working with -5-5V
amplifier,the Force-Voltage relationship will be 0-1000N
compression load VS 0-5V output, 0-1000N traction load VS 0-(-5V)
output, which is linear regardless of the measurement error.
