Force indicator load cell indicator

Technical parameters

• CE certified

• Aluminum housing,compact size

• 24 bit Sigma-Delta ADC,high accuracy

• Power supply: 24V DC

• Load cell excitation: 5V DC

• Input range: -10mV~10mV

• Load cell connection: 4-wire or 6-wire

• Display range: -99999....999999

• High sampling speed: 120Hz/480Hz/960Hz settable

• Working temperature: -10...+40^oC

• Humidity: <90% RH without dew

• Non-linearity: <0.01% F.S.

• I/O: 1 input and 2 outputs

• Communication interface: RS485 or RS232

• Analog output: 0-5V/0-10V/0-20mA/4-20mA/User self-define

• Zero tracking

• Peak hold

Dimensions

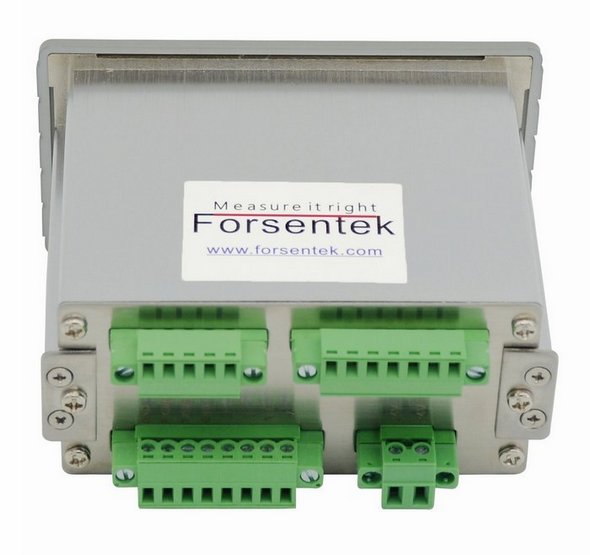

Indicator back panel

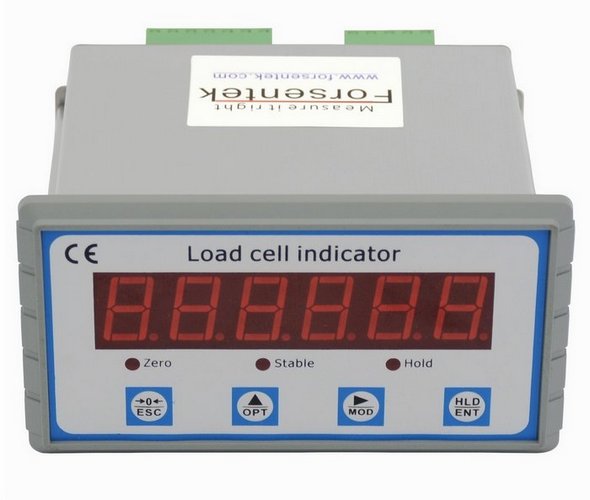

Force indicator load cell indicator

Force indicator force meter load cell display
