Load indicator load cell display load cell meter

Technical parameters

• Aluminum housing,compact size

• 24 bit Sigma-Delta ADC

• Power supply: 24V DC

• Load cell excitation: 5V DC

• Input range:-10mV~10mV

• Display range: -99999....999999

• High sampling speed:120Hz/480Hz/960Hz settable

• Working temperature:-10...+40^oC

• Humidity:<90% RH without dew

• Non-linearity:<0.01% F.S.

• I/O: 1 input and 2 outputs

• Communication interface:RS485 or RS232

• Analog output: 0-5V/0-10V/0-20mA/4-20mA/User self-define

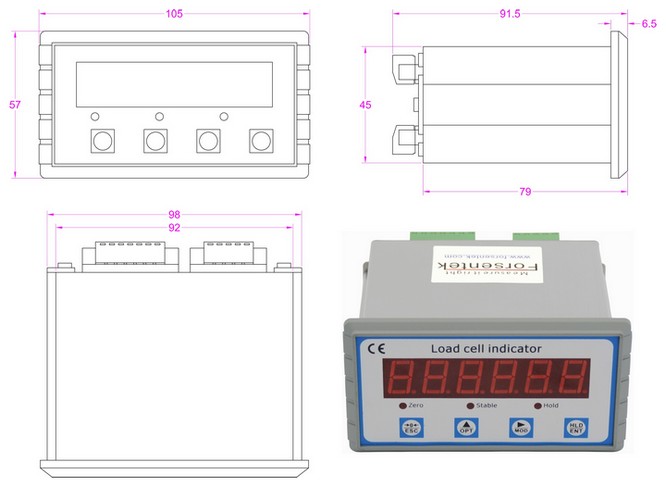

Dimensions

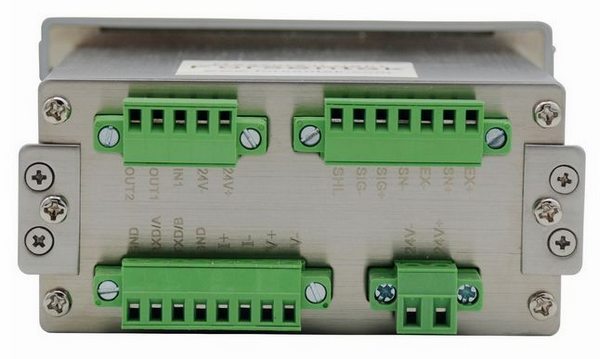

Back panel

Load cell indicator force controller

Load cell indicator/load cell display/force meter/torque meter

​
