Small size load cell arduino weight sensor 10kg 5kg 3kg 2kg 1kg

Features

• Aluminum construction,miniature size,light weight
• 1000 ohms resistance,low heat emission compared to 350 ohms version
• Suitable for arduino based applications
• Low cost weight sensor
• Customizable

Specifications

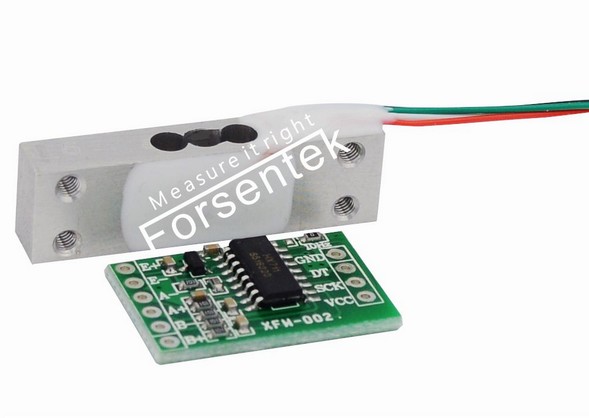

Small size load sensor FMZK is a transducer that converts mechanical force into electrical signal proportional to the applied force or weight.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the impedance variation of the wheatstone bridge,under constant power supply, the output signal changes proportionally, thus the weight or force can be measured by measuring the output signal from the load cell.This load cell can be connected with arduino board through HX711.

Dimensions(unit in milimeter)

Ordering code:

FMZK-0.5kg FMZK-1kg FMZK-2kg FMZK-3kg FMZK-5kg FMZK-6kg FMZK-10kg

Click here to download datasheet
