Name: Arduino load cell 2kg 5kg 10kg small load cell sensor for arduino
Brand: Forsentek
Price: 1 USD

Add to Cart

load cell arduino
Features

arduino weight sensor

Specifications

Rated capacity	2kg / 20N / 4.4 lbf 3kg / 30N / 6.6 lbf 5kg / 50N / 10 lbf 10kg / 100N / 20lb
Rated output	1.0 mV/V
Excitation	3-10 V
Zero balance	±0.1mV/V
Nonlinearity	±0.1% of R.O.
Hysteresis	±0.1% of R.O.
Nonrepeatability	±0.05% of R.O.
Creep(2min)	±0.05% of R.O.
Safe overload	120% of F.S.
Ultimate overload	200% of F.S.
Compensated temperature	0...+40^oC
Operating temperature	-10...+60^oC
Temperature shift zero	±0.05% of R.O./^oC
Temperature shift span	±0.05% of R.O./^oC
Input resistance	1000±100 ohms
Output resistance	1000±10 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP62
Material of element	Aluminum alloy
Cable	32AWG*180mm(Longer cable available)
Wiring code	Red--Exc+ Black--Exc- Green--Sig+ White--Sig-

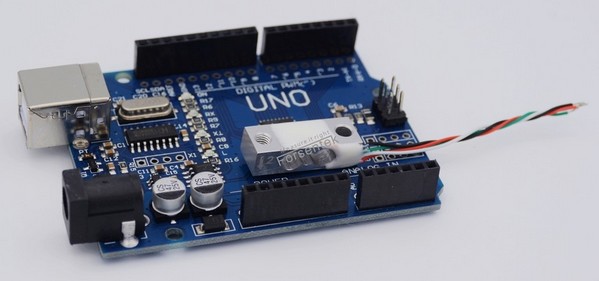

Small size weight sensor arduino compatible

arduino load cell

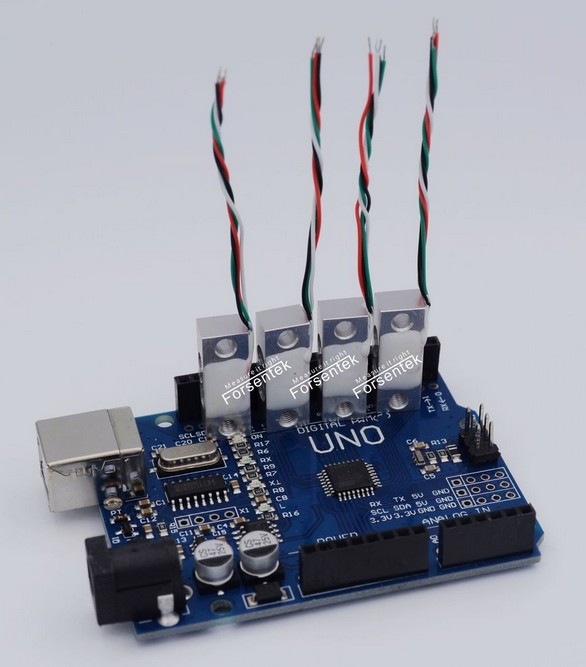

2kg 3kg 5kg 10kg Micro load cell for arduino based applications

load cell for arduino

Dimensions(unit in milimeter)

arduino load cell 2kg 3kg 5kg 10kg

Ordering code:

FMZC-2kg FMZC-3kg FMZC-5kg FMZC-10kg
